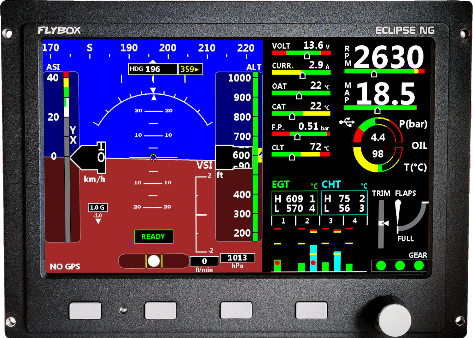

ECLIPSE NG IFIS- Integrated Flight Information System
ECLIPSE NG IFIS- Integrated Flight Information System
The integrated instruments "ECLIPSE NG" features a very sunlight readable display that shows the engine and flight data organized in one or more pages. Many features make ECLIPSE NG unique in the avionics market, such as the intuitive graphical data representation, the vocal alarms, the 3 color cameras video inputs and the datalogger with integrated graphical viewer.
Two different versions meet the most demanding requirements, allowing you to configure your instrument panel to the best quality price ratio available today.
Air and attidude data
- Attitude indicator
- Slip indicator
- Compass
- Indicated Air Speed
- Altimeter
- Vertical speed indicator
- GPS ground speed
- G-Meter
Engine
- RPM
- MAP
- Oil pressure
- Oil temperature
- Up to 6 EGT
- Up to 6 CHT
- Coolant (For coolant temperature reading)
- OAT
- CAT
- Fuel Pressure
- Fuel Computer with Instantaneous Fuel Consumption, Endurance, Fuel Remaining, Fuel Used Since Last Flight, Range and Reserve to Next Point (if connected to a GPS)
- Up to 3 fuel level gauges with calibration
- Supply Voltage
- Current
- Hour meter with separate counters for each speed (green arc, yellow arc, red arc)
- Local Time from GPS
- Automatic Flight Timer
Moving parts indication
- Trim position (Elevator)
- Flap position
- Gear up/down
2 axis autopilot
- Maintain set heading and altitude
- GPS navigation (from wire reading RMB)
- WIFI navigation (receiving a flight plan from App, will require Flybox Connect kit)
Others
- Datalogger with 1 second sampling over 100h
- Peak memory for each engine parameter reading
- 3 Camera inputs
- Voice alarm output
- Digital alarm outputs (to connect LED or Buzzer)
- Customisable thresholds, units and alarms for each instrument displayed
- 2 CAN BUS
- 2 RS232 serial port
- 1 USB port
- GPS data
- Altiture encoder for serial Transponder
Possibility of connecting optional second screen, (Eclipse NG MFD)
